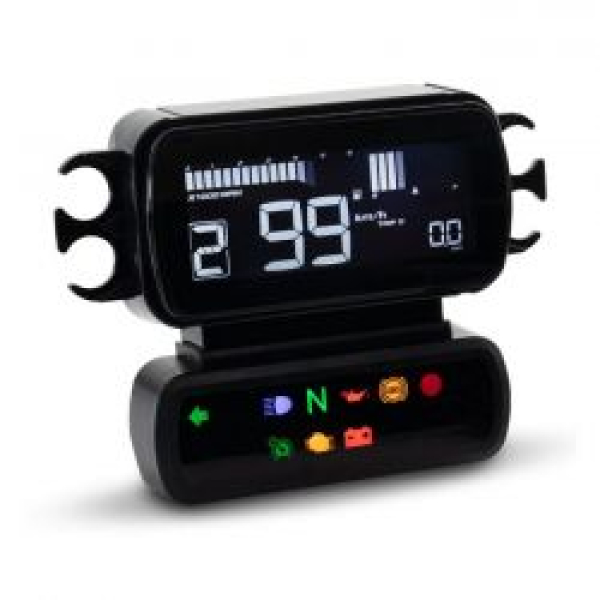

Koso, D2 multifunctional speedometer / tachometer

100% plug & Play high end custom replacement for the stock Street Bob speedo/tachometer. Features 8 color interchangeable LCD display. The instrument comes with a a series of programmable options. - Speedometer range (digits): 0-199 km (0-124 miles), displays per 1 kmh (mph) - Display delay : < 0.5 seconds - Internal and external odometer: 0 to 999.999 km (miles), displays per 0.1 km (mile) - Trip meter A/B: 0 to 9999.9 km (mile) with auto reset after 9999.9 km - Tire circumference adjustment: 50 to 210%, sets per per 1% - Tachometer: 0 - 10.000 RPM - Backlight colors: White, Red, Orange, Yellow, Blue, Light Blue, Purple, Green - Maintenance intervals: Off, 500 - 16.000 km (300 - 10.000 miles). Sets per 100km (miles) - Indicator lights: Right turn signal (Green), left turn signal (green), security (Red), ABS (Amber), engine oil (Red), neutral (Green), high beam (blue), low fuel (amber), fog light (green), battery (Red), engine light (amber), cruise control light (green/amber), tire pressure warning (amber) - Shift light: 2.000 to 10.000 RPM adjustable (red/white backlight flashing). Sets per 100RPM - Engine temperature: -38 to 572°F (-39 to 300°C) - Clock: 12h / 24h adjustable - Volt meter: Range 8 - 18V - Backlight Brightness: 1/5 (darkest) to 5/5 (brightest) - Tire Pressure: TPMS, FR/RR/LR when TPMS supported. Range HI, 0-73 PSI, 0-506kPa, 0-5.0bar. Displays per 1 PSI, 1 kPa, 0.1 bar - Fuel gauge: 10 levels - Voltage: 12V DC - Works in: -20~85°C - Storage Temperature: -30-90 °C - Confirm JIS D 0203 (S2) standard - Gauge size 88.2 x 67.0 x 35.2 mm - Gauge Weight: Approx. 70 grams

Fits: > 06-11 Dyna FXDB Street Bob (non CAN-bus models) (NU)
