KOSO, HD-02 6-piece gauge kit for Touring

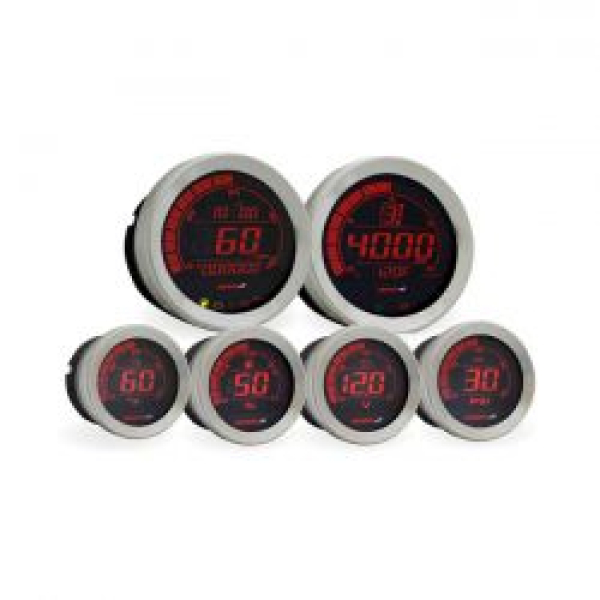

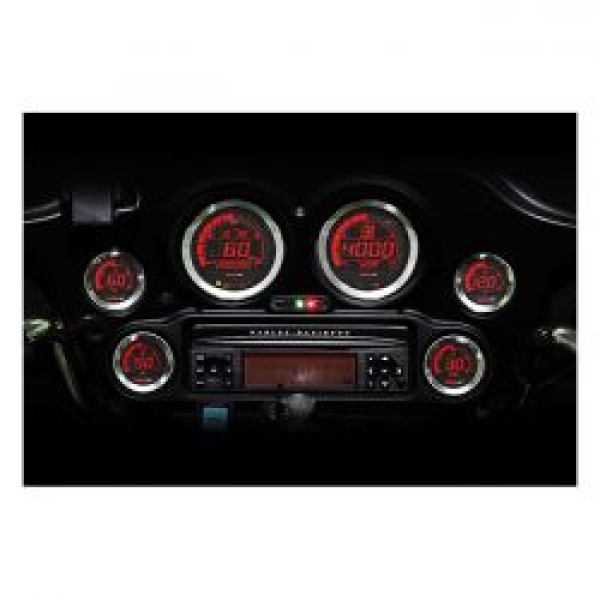

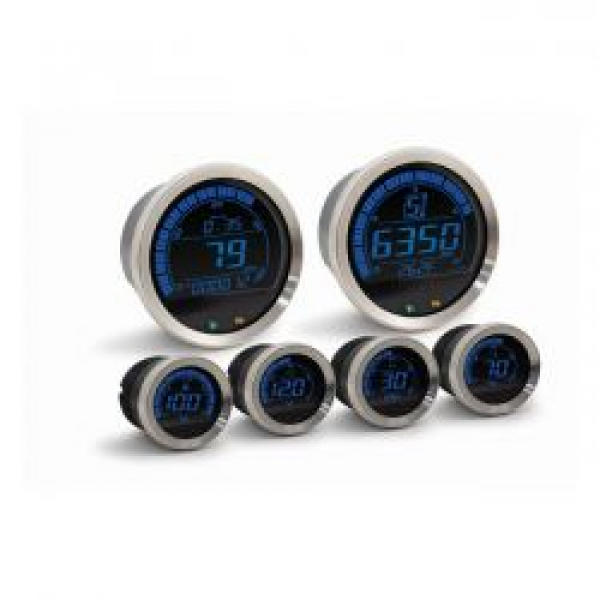

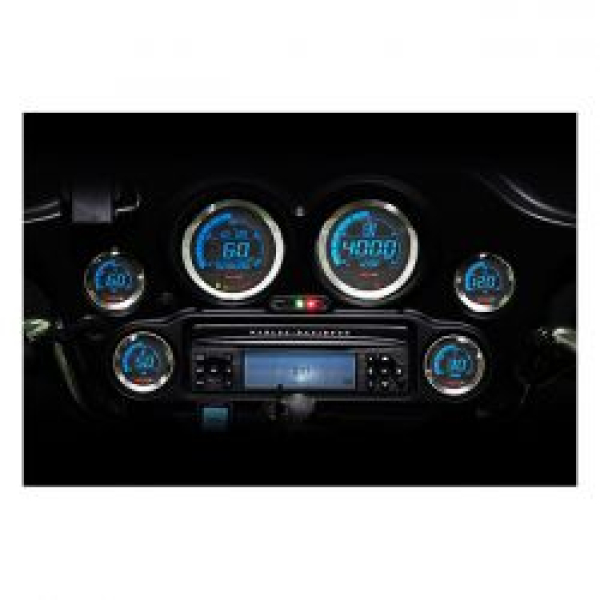

Plug & play replacement for the OEM instruments. Plug OEM connectors into instruments and install into the fairing. Ready! Dual display color option (red or blue) and 5 intensity levels for the digits and graphics in each individual instrument. Once the ignition is off, all instruments are completely black to provide a full black-out look. This kit includes a 4" speedometer, a 4" tachometer with gear indicator, a 2" oil temperature gauge, 2" ambient temperate gauge, 2" fuel gauge and a 2" volt meter. - 4 inch speedometer * Range (digits): 0-360 km/h (0-225 mph), display per 1 kmh (mph) * Grapic display range: 0 to 200km/h / 0 to 120mph, bar displays per ±4.2km/h / 2.5mph * Odometer display range: 0 to 999,999 km (miles), displays per 1 km (mile) * Trip meter: 0 to 9999.9 km (miles) * Clock: 24h display * Clock: sccuracy: ± 4 seconds/day * Indicator lights: Fuel light (Yellow), Engine check light (Yellow, Neutral (Green), Voltage (Red), Immobilizer (Red) * Standard JIS D 0203 specified instrument - 4 inch tachometer * Display range: 0 to 8000 rpm * Graphic display range: 0 to 8000 RPM, bar displays per ±166 rpm * Gear indicator: N, 1, 2, 3, 4, 5, 6 * Engine Temperature: 0 to 255°F / -17 to 123°C * Indicator lights: Cruise control lights (orange/green), ABS (Yellow) * Standard JIS D 0203 specified instrument - 2 inch ambient temperature gauge * Outside temperature: 0-120 °F * Standard JIS D 0203 specified - 2 inch fuel gauge * Display range: 0-100%, per 1% * Low fuel indicator light * Standard JIS D 0203 specified instrument - 2 inch oil temp gauge * Display Range: 0-120 °F * Standard JIS D 0203 specified instrument - 2 inch volt meter * Display range: 8.0-16.0V, displays per 1 Volt * Standard JIS D 0203 specified instrument.

Fits: > 04-13 Touring with fairing (excl. Road King) (NU)
