KOSO, HD-05 speedometer / tachometer. Non CAN-bus

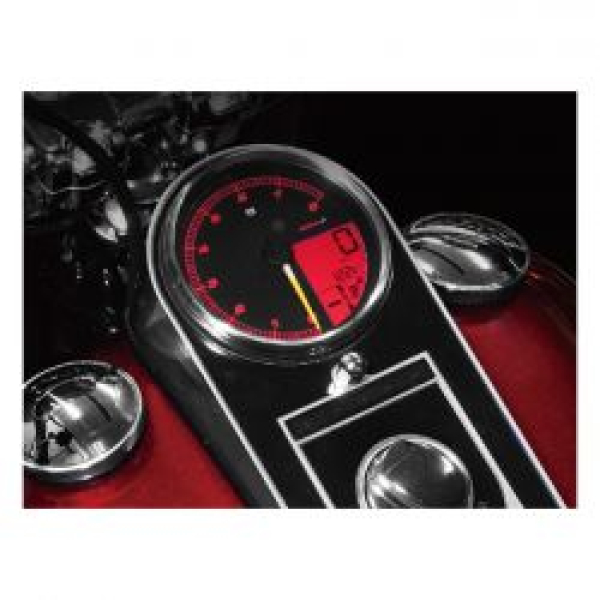

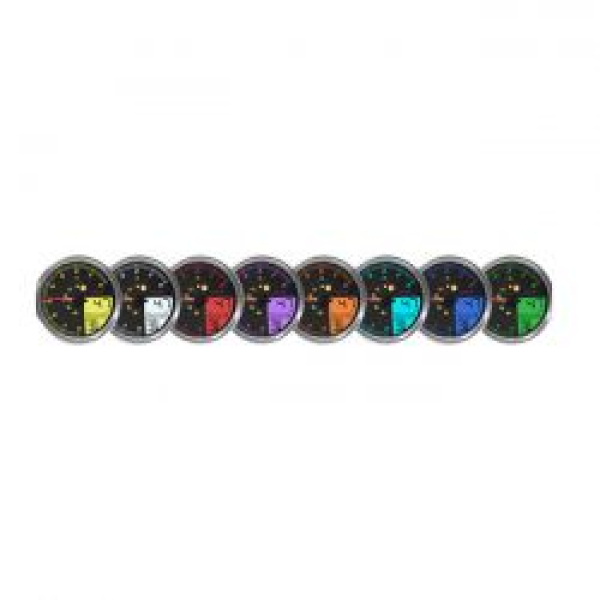

Black face, chrome bezel. Replacement for the later 4.5 (11.43cm) diameter tank mounted H-D speedometers. Connects plug & play to the existing wiring. Offers speedometer (kmh/mph), tachometer, odometer, two trip meters, rev limit setting, shift light, multiple color backlights, gear indicator, engine temperature, battery voltage, fuel level indicator, average fuel consumption and more. - 12V DC - Multiple color backlight: Red / Orange / Yellow / Green / Blue / Indigo / Purple / White - Backlight brightness: 5 levels - Speedometer: 0 to 360km/h (0 to 225 mp/h) - Display delay : < 0.5 seconds - Odometer: 0 to 999.999 km (miles) - Trip meter A/B: 0 - 9,999.9 km (miles) with auto reset after 9.99.9 km (miles) - Tire circumference adjustment: 50 to 210%, per 1% - Gear indicator: Off / Neutral and 1 - 6 gear - Tachometer: 0 to 8,000 rpm - Rev limit light: 2,000 to 8,000 rpm. Warning light flashes when set rpm is exceeded. Sets per 100 rpm - Maximum speed warning adjustable (light or flash) - Engine temperature warning: 40 - 215 °C (40 - 419 °F) adjustable - Fuel gauge: 6 levels - Tank volume: Off / 1 to 9.9 gallons (approx. 3.8 to 37 liters) - Average consumption fuel consumption: Off / liters per 100 km per liter / Miles per gallon (US spec) / miles per gallon (UK spec) - Clock: 12h / 24h - Volt meter: 8-18 V DC - Maintenance intervals: Off / 500 to 16,000 km (300 to 10,000 miles). Sets per 100km (miles) - Fuel reserve: 0 to 9.999 km (miles). When range is less than 10 miles (16 km) 'LO RNG' warning will appear on display - Indicator lights: RPM warning, fuel reserve, engine check, low voltage, anti-theft devise, cruise-control - Works in: 14 to 140 °F (10 to 60 °C) - Required voltage DC 12 V - Confirm JIS D 0203 S2 - Dimensions: (D x W) Ø 45/8 x 13/4 "(Ø 117 x 45 mm) - Weight: 208.5 gram (7.36 oz.)

Fits: > 04-10 Softail; 04-13 FLHR; 04-11 FXDWG (NU)
