1. Carburetor assembly, 1937-1957 W & G

1. Carburetor assembly, 1937-1948 UL

1. Carburetor assembly, Linkert M-88, WLA & WLC, green

1. Carburetor assembly, Linkert M-88, WLA & WLC, brass

1. Carburetor assembly, Linkert M-74B, Panhead

- Gasket kit, James, contains all gasket and seals

2. Gasket, James, 3-hole, 10-pack

2. Gasket, Athena, 3-hole, 10-pack

3A. Support kit, Type 2, parkerized, 1948-1953 EL & FL, Colony

3B. Support kit, parkerized, late 1955-1965 FL, Colony

3C. Support kit, parkerized, 1930-1938 VL & UL, Colony

3D. Support kit, parkerized, 1939-1948 UL, Colony

3E. Support kit, parkerized, 1936-1952 W, 1936-1958 G, Colony

3F. Support kit, parkerized, 1936-1940 EL, Colony

3H. Support kit, parkerized, 1954-early 1955 FL, Colony

3G. Support kit, Type 1, parkerized, 1941-1947 EL, Colony

4. Washer 3/8"

5. Nut, 3/8"-24

6. Screw

7. Disc, 1.25" carbs on WL & UL

7. Disc, 1.25" carbs on WL & UL +.030"

7. Disc, 1.50" carbs on Knucklehead

7. Disc, 1.50" carbs on Knucklehead, oversized

7. Disc, 9-X, Panhead

7. Disc, 9-X, Panhead, oversized

7. Disc, No. 10, 31mm, M-18

7. Disc, No. 12, 39mm

8. Plug

8A. Kit, plug #8 and 3 plug screws #10, Colony

9. Body

10. Plug screw (3)

11. Bushing, all models

12. Spring

13. Screw, 10-24x5/8", white plated, 10-pack

13A. Screws pos. 13, 15 & 16, 30-pack

14. Lever with screws pos. 12, 15 & 16, 1937-1948 UL, 1937-1956 WL

14. Lever with screws pos. 13, 15 & 16, VL

15. Screw, 6-32x3/8", white plated, 10-pack

16. Screw, 6-32x3/4", white plated, 10-pack

17. Screw, Colony USA

18. Shaft, all side valve models

18. Shaft, all 1936-1947 OHV models

18. Shaft, all 1948-1965 OHV models

19. Collar, Sidevalve models

19. Collar, OHV models

20. Spring

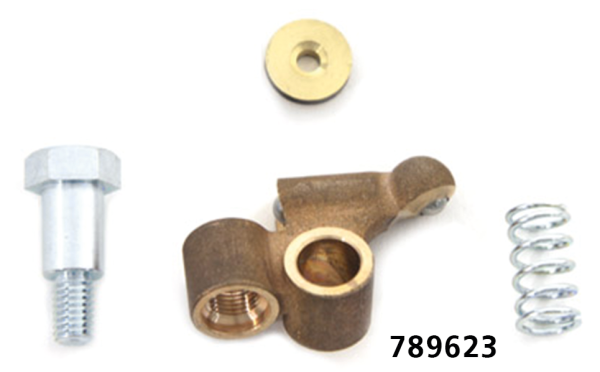

21. Lever for 1 1/4" and 1 1/2" carburetors, Samwel

21. Lever for 1 1/4" and 1 1/2" carburetors, includes #17, #19 & #20, V-Twin Mfg.

21. Lever for 1" carburetors, includes #17, #19 & #20, V-Twin Mfg.

22. Screw

23. Low speed needle

23. Low speed needle with spring #24 and screws #22 & 25

23. Low speed needle 1 1/4" & 1 1/2" carbs, Colony

23. Low speed needle 1" carbs, Colony

24. Spring

25. Screw

26. High speed needle for M88 carbs

26. As fmc-745807 with longer thread for worn M88 carbs

27. Screw, WLA, WLC

28. Venturi 1", 1934-1948 74 & 80CI Sidevalve, 1930-1941 45CI except W & G (Carb. M41, M42, M51, M52, M54, M88)

28. Venturi 1 1/16", 1934-1948 74 & 80CI Sidevalve, 1930-1952 45CI except W and G (carb. M5, M41, M42, M51, M52)

28. Venturi 1 1/8", Special for 1 1/4" carburetor M41 & M51

28. Venturi 1 1/8", 1940-1952 61CI OHV (Carb. M35, M35T, M36)

28. Venturi 1 5/16", 1941-1954 OHV (Carb. M25, M45, M45A, M74, M74B, M75)

28. Venturi 15/16", late 1941-1943 WLA & WLC (Carb. M88)

29. Air intake choke disc, all Sidevalve models

30. Fixed main jet #1 (.052")

31. Spring, dealer 10-pack

32. Ball, 10-pack

33. Lever, chrome, civillian

33. Lever, WLA & WLC

33. Lever, early type VL, RL, UL & WL

34. Shaft, 1.25" carbs, 1942-1948 Big Twin, 45CI 1930-1952

34. Shaft, 1.25" carbs, 1942-1948 Big Twin, 45CI 1930-1952 with problem solving seal

34. Shaft, 1" carbs, 45CI 1936-1954

34. Shaft, 1.5" carbs, 1940-1965 Big Twin, K model 1952-1956 with problem solving seal

35. Cap, all Sidevalves

36. Screw

37. Lever

38. Special screw and nut, float mounting

39. Float, cork

39. Float, copper

39. Float, Nitrophyl, Samwel

39. Float, Nitrophyl, V-Twin Mfg.

40. Screw

41. Float bowl only, Sidevalve

41. Bowl, late 1 1/4" carburetor

41. Bowl, 1 1/2" carburetor, 1936-1954 OHV

41A. Complete float bowl assembly, Sidevalve

42. Pin with screw #40, Samwel

42. Pin with screw #40, Colony

43. Washer, 10-pack

44. Bowl drain plug, Samwel

44. Bowl drain plug with gasket, Colony

45. Nozzle, all Side Valve models

45. Nozzle, Knucklehead

46. Valve and seat, Colony

46. Valve and seat, Samwel

46. Valve and seat, V-Twin Mfg.

47. Spring

48. Gasket

49. Bowl nut, white plated, Samwel

49. Bowl nut with Pos. 48, nut & washer, white plated , Colony

50. Float bowl gasket, OHV, James, 10-pack

50. Float bowl gasket, OHV, Athena, 10-pack

50A. Float bowl gasket, Sidevalves, James, 10-pack

50A. Float bowl gasket, Sidevalves, Athena, 10-pack

50. Set of 4 carburetor to manifold screws & washers

51. Adjustable high speed needle

51. As Fmc-745806 with longer thread for worn carbs

52. Adjustable high speed needle, Knucklehead

52. Adjustable high speed needle for 1" Schebler & Linkert

52. High speed needle for M74 carbs and Panhead

53. Gasket, James, 4-hole, 10-pack

53. Gasket, Athena, 4-hole, 10-pack

54. Lever only, 1933-1947 Knucklehead, 1948-1965 Panhead, parkerized, Colony

54. Rod, 1933-1947 Knucklehead, 1948-1965 Panhead, parkerized, Colony

54. Lever with rod 1933-1947 Knucklehead, 1948-1965 Panhead, Samwel

55. Air intake choke disc, 1948-1965 OHV models

56. Lever with screws 13, 15 & 16, 1941-1947 Knucklehead, 1937-1952 WL, 1937-1956 G

56. Lever with screws 13, 15 & 16, 1948 Panhead

56. Lever with screws 13, 15 & 16, 1949-up Panhead

57. Wire nipple & screw, Samwel

57. Wire nipple & screw, Colony

57. Wire nipple & screw, .005" oversize, Colony

58. Air intake stop, all OHV Big Twin

LINKERT M-SERIES CARBURETOR
